Lean 4 VSCode Extension

This extension provides VSCode editor support for the Lean 4 programming language. It uses the all new Language Server implemented in Lean.

Installing the extension and Lean 4

Install the extension from the marketplace.
Create a new folder called foo and add a file named hello.lean containing the following:
```
import Lake
#eval Lake.leanVersionString
```
Open this folder in VS Code using File/Open Folder.
Open your file hello.lean.
If Lean is not yet installed on your system you will see a prompt like this:
Click the Install Lean using Elan option and enter any default options that appear in the terminal window.
After this succeeds the correct version of Lean will be installed by elan and you should see something like this in the Lean: Editor output panel:
```
info: downloading component 'lean'
info: installing component 'lean'
Lean (version 4.0.0-nightly-2021-10-18, commit e843fb7ca5b5, Release)
```

See Complete Setup for more information on how the lean version is determined for your VS Code workspace.

This version of the VS Code extension only works on Lean 4 source files and not Lean 3. There is a separate VS Code extension for Lean 3. You can have both extensions installed at the same time, they can live side by side.

Lake integration

Note that once the Lean toolchain is installed you can also turn your folder into a Lake project. Lake is a build system for Lean projects. The VS code extension will honor the Lean version specified in your lean-toolchain file.

Open a VS Code Terminal window in your foo folder and type the following:

lake init foo
lake build

This will add some package definition files to your project along with a Main.lean entry point and build an executable program. You can run the program ./build/bin/foo and you will see the expected output:

Hello, world!

Features

The extension supports the following features. For basic VS Code editor features, see the VS Code User Interface docs.

The extension provides:

A set of handy Lean4: commands available with Ctrl+Shift+P
Side-by-side compatibility with the Lean 3 VSCode extension
Nice integration with the Lean Language Server as shown below.
An Infoview panel showing interactive information about your Lean programs.

Lean language server features

Automatic installation of Lean using elan.
Incremental compilation and checking via the Lean server (*)
Type information & documentation on hover
Error messages and diagnostics
Syntax highlighting with basic Lean 4 syntax rules
Semantic highlighting
Hover shows documentation, types:
Auto-completion drop downs based on context and type via the Lean Server. For example, if you type "." after Array you will get:
An Infoview displaying useful information about your current Lean program.
Goto definition (F12) will work if the Lean source code is available. A standard elan install of the Lean toolchain provides Lean source code for all the Lean standard library, so you can go to the definition of any standard library symbol which is very useful when you want to learn more about how the library works. Note also that currently goto definition does not work if the cursor is at the very end of a symbol like Array.append|. Move the cursor one character to the left Array.appen|d and it will work. See open issue #767.
Breadcrumbs

(*) Incremental updates do not yet work automatically across files, so after changing and rebuilding the dependency of a Lean 4 file, the language server needs to be manually informed that it should re-elaborate the full file, including the imports. This can be done using the Lean 4: Refresh File Dependencies command, which can be activated via Ctrl+Shift+X.

Lean editing features

Support for completing abbreviations starting with a backslash (\). For example you type \alpha and the editor automatically replaces that with the nice Unicode character α. You can disable this feature using the lean4.input.enabled setting, see below.
When you hover the mouse over a letter that has one or more abbreviations you will see a tooltip like this:
Auto-completing of brackets like (), {}, [], ⟦ ⟧, ⦃ ⦄, ⟮ ⟯, ⦃ ⦄ and block comments /- ... -/.

Infoview panel

The Infoview panel is essential to working interactively with Lean. It shows:

Tactic state widgets, with context information (hypotheses, goals) at each point in a proof / definition,
Expected type widgets display the context for subterms.
Types of sub-terms in the context can be inspected interactively using mouse hover.
All Messages widget, which shows all info, warning, and error messages from the Lean server for the current file.

Suppose you have the following theorem:

theorem test (p q : Prop) (hp : p) (hq : q) : p ∧ q ∧ p :=
  by apply And.intro
     exact hp
     apply And.intro
     exact hq
     exact hp

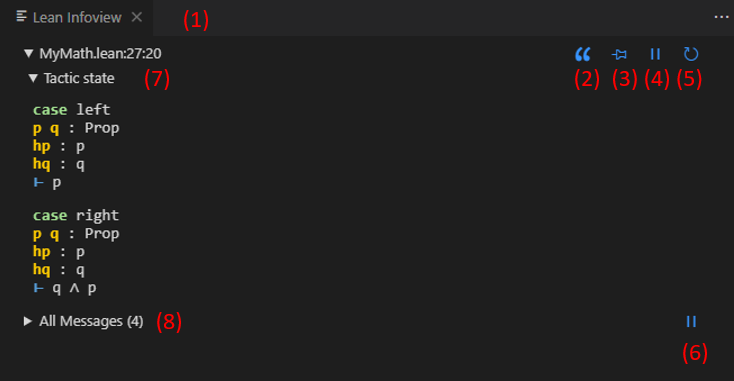

and you place the cursor at the end of the line by apply And.intro the Infoview will display the following information:

(1). The Infoview will activate automatically when a Lean file is opened, but you can also reopen it any time using the icon in the top right of the text editor window or the Ctrl+Shift+P Lean 4: Infoview: Display Goal command or the key that is bound to the command, which is Ctrl+Shift+Enter by default. You can also disable auto-opening behavior using the setting lean4.infoViewAutoOpen described below.

(2) through (6):

Symbol	Description
	Copy the contents of the widget to a comment in the active text editor.
	Split off a "pinned" tactic state widget, which tracks the tactic state at a fixed position, even if you move your cursor away. When pinned you will see the unpin and reveal file location icons appear.
	Remove a pinned widget from the Infoview.
	Move the cursor in the editor to the pinned location in the file.
	Prevent the tactic state widget from updating when the file is edited. When paused you will see the following addition icons show up.
	Once paused you can then click this icon to resume updates.
	Refresh the tactic state of the pinned widget.

(7). Types in the context can be examined in the tactic state widget using mouse hover:

(8). The "All Messages" widget can be expanded by clicking on it (or hitting the keybind for lean4.displayList, which is Ctrl+Shift+Alt by default

Extension Settings

This extension contributes the following settings (for a complete list, open the VS Code Settings and type Lean4 in the search box):

Server settings

lean4.executablePath: specifies the name of the Lean executable to be used when starting the Lean language server. Most users (i.e. those using elan) should not ever need to change this. If you are bundling Lean and vscode-lean with Portable mode VS Code, you might find it useful to specify a relative path to Lean. This can be done by starting this setting string with %extensionPath%; the extension will replace this with the absolute path of the extension folder. For example, with the default directory setup in Portable mode, %extensionPath%/../../../lean will point to lean in the same folder as the VS Code executable / application.
lean4.serverEnv: specifies any Environment variables to add to the Lean 4 language server environment. Note that when opening a remote folder using VS Code the Lean 4 language server will be running on that remote machine.
lean4.serverEnvPaths: specifies any additional paths to add to the Lean 4 language server environment PATH variable.
lean4.serverArgs: specifies any additional arguments to pass on the lean --server command line.
lean4.serverLogging.enabled: specifies whether to do additional logging of commands sent to the Lean 4 language server. The default is false.
lean4.serverLogging.path: if serverLogging.enabled is true this provides the name of the relative path to the store the logs.

Input / editing settings

lean4.input.enabled: enables abbreviation input completion mode. For example, it allows you to type \alpha and have that be replaced with the greek letter (α).
lean4.input.eagerReplacementEnabled: enables/disables eager replacement as soon as the abbreviation is unique (true by default)
lean4.input.leader: character to type to trigger abbreviation input completion input mode (\ by default).
lean4.input.languages: specifies which VS Code programming languages the abbreviation input completion will be used in. The default is [lean4, lean].
lean4.input.customTranslations: add additional input Unicode translations. Example: {"foo": "☺"} will correct \foo to ☺ (assuming the lean.input.leader has its default value \).
lean4.typesInCompletionList: controls whether the types of all items in the list of completions are displayed. By default, only the type of the highlighted item is shown.

Infoview settings

lean4.infoViewAutoOpen: controls whether the Infoview is automatically displayed when the Lean extension is activated for the first time in a given VS Code workspace(true by default). If you manually close the Infoview it will stay closed for that workspace until. You can then open it again using the Ctrl+Shift+P Lean 4: Infoview: Display Goal command.
lean4.infoViewAutoOpenShowGoal: auto open shows goal and messages for the current line (instead of all messages for the whole file). In this mode the Infoview updates often every time you move the cursor to a different position so it can show context sensitive information. Default is true.
lean4.infoViewTacticStateFilters: An array of objects containing regular expression strings that can be used to filter (positively or negatively) the plain text tactic state in the Infoview. Set to an empty array [] to hide the filter select dropdown. Each object must contain the following keys:
- regex is a properly-escaped regex string,
- match is a boolean, where true (false) means blocks in the tactic state matching regex will be included (excluded) in the Infoview,
- flags are additional flags passed to the JavaScript RegExp constructor.
- The name key is optional and may contain a string that is displayed in the dropdown instead of the full regex details.
lean4.infoViewFilterIndex: Index of the filter applied to the tactic state (in the array infoViewTacticStateFilters). An index of -1 means no filter is applied (which is the default for this setting).
lean4.infoViewAllErrorsOnLine: show all errors on the current line, instead of just the ones on the right of the cursor, default true.
lean4.elaborationDelay: Time (in milliseconds) which must pass since latest edit until elaboration begins. Lower values may make editing feel faster at the cost of higher CPU usage. The default is 200.

Extension commands

This extension also contributes the following commands, which can be bound to keys if desired using the VS Code keyboard bindings.

The format below is: "lean4.commandName (command name): description", where lean.commandName represents the name used in settings.json and "command name" is the name found in the command palette (accessed by hitting Ctrl+Shift+P).

Server commands

lean4.restartServer (Lean 4: Restart Server): restart the Lean 4 Language Server. Useful if the server crashes or if you built new .olean files in your workspace.
lean4.refreshFileDependencies (Lean 4: Refresh File Dependencies): This command is a work around for the fact that full incremental updates do not yet work automatically across files, so after changing and rebuilding the dependency of a Lean 4 file, the language server needs to be manually informed that it should re-elaborate the full file, including the imports. This command has a default keyboard binding of Ctrl+Shift+X.
lean4.selectToolchain (Lean 4: Select Lean Toolchain) Select version of the Lean toolchain to use for the current workspace. This shows the list of available toolchains returned from elan toolchain list and allows you to easily switch. The Lean 4 language server will automatically be restarted using the selected toolchain. This command also provides a choice labelled Other... where you can enter the full path to a Lean 4 executable to use instead. This choice is remembered in your Workspace Settings and you can reset any custom choice by selecting Reset workspace override... from the list (if it is shown).

You can test the latest Lean 4 master branch with this VS Code extension. First you build Lean, then run the following commands:
```
cd <lean4-repo>
elan toolchain link master ./build/release/stage1
```
Now the Lean4: Select Toolchain will show master as one of the toolchains you can select. You will then see a prompt to restart the Lean Language Server and if you click Restart Lean, the server will be restarted automatically using the your brand new locally built version of Lean. This is useful if you are adding features to Lean 4 that you want to test in the VS Code extension before an official Lean4 nightly build is published.

Editing commands

lean4.input.convert (Lean 4: Input: Convert Current Abbreviation): converts the current abbreviation (bound to tab by default)

Infoview commands

lean4.displayGoal (Lean 4: Infoview: Display Goal): open the Infoview panel (bound to Ctrl+Shift+Enter by default)
lean4.displayList (Lean 4: Infoview: Toggle "All Messages"): toggles the "All messages" widget in the Infoview (bound to ctrl+alt+shift+enter by default)
lean4.infoView.copyToComment (Lean 4: Infoview: Copy Contents to Comment"): if there is a valid value in the Infoview marked with the icon that can be copied to a comment, this command invokes that action in the editor.
lean4.infoView.toggleStickyPosition (Lean 4: Infoview: Toggle Pin): enable / disable "sticky" mode. On enable, a tactic state widget will be created and pinned to this position, reporting the goal from this point even as the cursor moves and edits are made to the file. On disable the pinned widget will be removed. (same as clicking on the or icon on the tactic state widget closest to the cursor.)
lean4.infoView.toggleUpdating (Lean 4: Infoview: Toggle Updating): pause / continue live updates of the main (unpinned) tactic state widget (same as clicking on the or icon on the main tactic state widget.)

Documentation commands

lean4.docView.open (Lean 4: Open Documentation View): Open documentation found in local 'html' folder in a separate web view panel.
lean4.docView.showAllAbbreviations (Lean 4: Show all abbreviations): Show help page containing all abbreviations and the Unicode characters they map to. This makes it easy to then search for the abbreviation for a given symbol you have in mind using Ctrl+F.

Complete Setup

The complete flow chart for determining how elan and lean are installed is shown below:

The start state is when you have opened a folder in VS Code and opened a .lean file to activate this extension.

If the extension finds that elan is not in your path and is not installed in the default location then it will prompt you to install lean via elan. If the folder contains a lean-toolchain version it will install that version otherwise it will install leanprover/lean4:nightly.

If elan is installed and there is a workspace override in place created by the Select Toolchain command then this version takes precedence until you remove that override.

Otherwise, if there is a lean-toolchain (or leanpkg.toml) in the workspace folder or in a parent folder then it will use the version specified in the specified version.

Otherwise, if elan toolchain list shows there is a (default) toolchain it will use that version.

Otherwise, it will prompt you to select a toolchain using the Select Toolchain command. If the elan toolchain list is empty it will add leanprover/lean4:nightly to the list so that there is always something to select.

Then with the selected version it runs lean --version to check if that version is installed yet. If this version is not yet installed lean --version will install it.

In the case of a workspace override the +version command line option is used on lean --version and lean --server to ensure that the overridden version is used.

For VS Code Extension developers

The rest of this page is for the developers of the Lean 4 VS Code Extension.

The repository contains NPM packages implementing editor integration for the Lean 4 programming language. The VS Code extension proper is in vscode-lean4, while lean4-infoview implements the information display. The API glue code between them is in lean4-infoview-api. We build the packages in tandem using Lerna.

Building

Make sure you have an up to date installation of npm and node.js. For example npm version 8.1.3 and node.js version v16.13.0.
Run npm install in this folder. This installs the Lerna package manager.
Run npx lerna bootstrap. This sets up the project's dependencies.
Run npx lerna run build. This compiles the extension (which is necessary for go-to-definition in VS Code).

Debugging

Open VS Code on this folder.
Press Ctrl+Shift+B to compile the extension. This step is needed for a working development setup.
Press F5 to launch the extension in the VS Code debugger, (the correct launch.json configuration is already checked into this repo.)

Note: if breakpoints are not working, try changing one line of code in function activate in extension.ts, even adding a newline seems to work, then press F5.
