DuPL

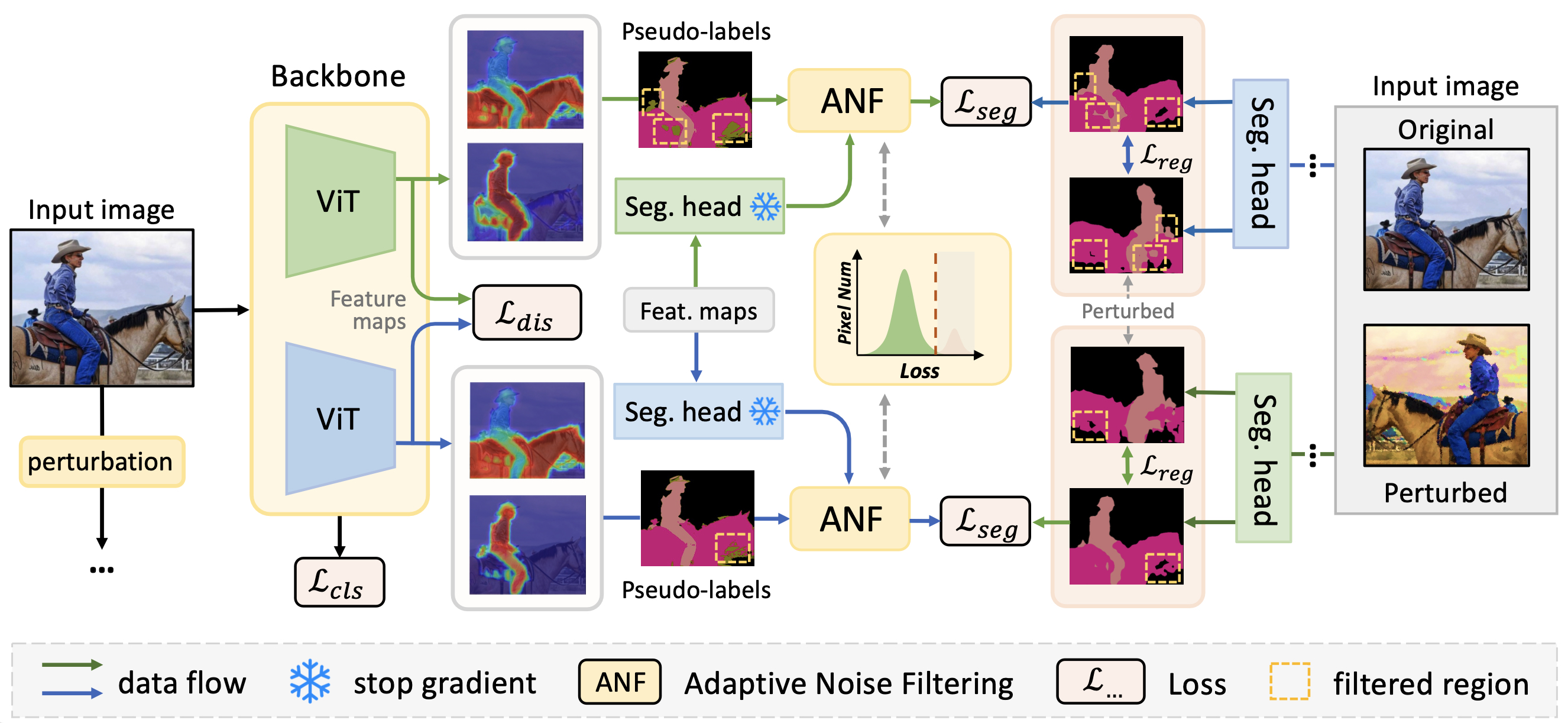

This repository contains the source code of CVPR 2024 paper: DuPL: Dual Student with Trustworthy Progressive Learning for Robust Weakly Supervised Semantic Segmentation

TODO

Release the pre-trained checkpoints and segmentation results.
Add the visualization scripts for CAM and segmentation results.
Update the citations.

Update Log

Mar. 17, 2024: Basic training code released.

Get Started

Training Environment

The implementation is based on PyTorch 1.13.1 with single-node multi-gpu training. Please install the required packages by running:

pip install -r requirements.txt

Datasets

VOC dataset

1. Download from official website

wget http://host.robots.ox.ac.uk/pascal/VOC/voc2012/VOCtrainval_11-May-2012.tar
tar –xvf VOCtrainval_11-May-2012.tar

2. Download the augmented annotations

The augmented annotations are from SBD dataset. Here is a download link of the augmented annotations at DropBox. After downloading SegmentationClassAug.zip, you should unzip it and move it to VOCdevkit/VOC2012. The directory should be:

VOCdevkit/
└── VOC2012
    ├── Annotations
    ├── ImageSets
    ├── JPEGImages
    ├── SegmentationClass
    ├── SegmentationClassAug
    └── SegmentationObject

COCO dataset

1. Download

wget http://images.cocodataset.org/zips/train2014.zip
wget http://images.cocodataset.org/zips/val2014.zip

2. Generating VOC style segmentation labels for COCO

The training pipeline use the VOC-style segmentation labels for COCO dataset, please download the converted masks from One Drive. The directory should be:

MSCOCO/
├── coco2014
│    ├── train2014
│    └── val2014
└── SegmentationClass (extract the downloaded "coco_mask.tar.gz")
     ├── train2014
     └── val2014

NOTE: You can also use the scripts provided at this repo to covert the COCO segmentation masks.

Experiments

Training DuPL

To train the segmentation model for the VOC dataset, please run

# For Pascal VOC 2012
python -m torch.distributed.run --nproc_per_node=2 train_final_voc.py --data_folder [../VOC2012]

# For MSCOCO
python -m torch.distributed.run --nproc_per_node=4 train_final_coco.py --data_folder [../MSCOCO/coco2014]

Evaluation

To evaluate the trained model, please run

# For Pascal VOC 2012
python eval_seg_voc.py --data_folder [../VOC2012] --model_path [path_to_model]

# For MSCOCO
python -m torch.distributed.launch --nproc_per_node=4 eval_seg_coco_ddp.py --data_folder [../MSCOCO/coco2014] --label_folder [../MSCOCO/SegmentationClass] --model_path [path_to_model]

Convert rgb segmentation labels for the official VOC evaluation:

# modify the "dir" and "target_dir" before running
python convert_voc_rgb.py

NOTE:

The segmentation results will be saved at the checkpoint directory. You can visualize the results if needed.
The evaluation of MSCOCO use DDP to accelerate the evaluation stage. Please make sure the torch.distributed.launch is available in your environment.
We highly recommend use high-performance CPU for CRF post-processing, which is time-consuming. On MS COCO, it may cost several hours for CRF post-processing.

Results

We have provided DuPL's pre-trained checkpoints on VOC and COCO datasets. With these checkpoints, it should be expected to reproduce the exact performance listed below.

Dataset	Backbone	val	Log	Weights	val (with MS+CRF)	test (with MS+CRF)
VOC	DeiT-B	69.9	log	weights	72.2	71.6
VOC	ViT-B	--	log	weights	73.3	72.8
COCO	DeiT-B	--	log	weights	43.5	--
COCO	ViT-B	--	log	weights	44.6	--

The checkpoints and segmentation results will be released soon. The VOC test results are evaluated on the official server, and the result links are provided in the paper.

Citation

Please kindly cite our paper if you find it's helpful in your work:

% To be updated

Acknowledgement

We would like to thank all the researchers who open source their works to make this project possible, especially thanks to the authors of Toco for their brilliant work.
