Self-Driving Car Engineer Nanodegree Program
I started by adding method NextSteeringValue() in PID.cpp, which provides steering value by PID control. Then I add Twiddling capability by adding InitTwiddle() and Twiddle() in PID.cpp.
On top of these, I tuned PID and twiddle parameters below, with fiding how each parameter works.
I tuned P only controller with throttle 0.2 because it easily goes off the track with much speed.The final parameter for P was finalized to 0.5.
While tries and erros are like below:
- P: 0.1
- Easily went off the track by under steer in recovering to center.
- P: 0.5
- Though sometimes went off the track, it ran 1 complete lap. It always overshoot the center line in recovering to center of the lane.
- P: 1.0
- Same as 0.5 case. But it is bit more likely to went off by over steer. Espcecially onece it gets away from the center, the steering value becomes much hard so easiliy overshoot the center of the lane much.
P only controller still works in slow speed though, it's not reasonalbe to use this as a controller. We need additional coefficients definitely.
The final parameter for PD was finalized to P: 0.5 and D: 9.2.
Tries and errors are:
- P: 0.5 and D: 1.2
- In throttle 0.2, it worked fine(make 1 complete lap) but with throttle 0.4, it did not.
- P: 0.5 and D: 3.2
- It worked fine with throttle 0.4.
- P: 0.5 and D: 9.2
- It worked fine with throttle 0.6. (Sometimes it fails though)
- Also worked fine with throttle 0.4. Too high D gain should prevents quick lane change, however in this situation we only have single lane so it did not matter.
So far, we can say that PD pramaters are affect by speed of vehicle. At very high level, higer speed requires higher gains.
Twiddle
In throttle 0.6 situation, I tested twiddle as below
- P: 0.5 and D: 9.2 with Twiddle every 300 frames
- P: 0.5 and D: 9.2 with Twiddle every 50 frames
- P: 0.5 and D: 9.2 with Twiddle every 10 frames
Slightly it did better than no-twiddle case, because parameters could catch up speed that changes overtime. I assumed more frequent twiddle does betther for more quick catch up. However I could not find significant different.
Anyway, adding D coefficinet significantly helps stabilizing the vehicle from overshooting again and again situation.
The final parameter is P:0.5, D:9.2 and I: 0.01. or 0.0. In this situation we don't have any wind, slippy road those prevent vehicle from goes straing with wheels. So when I applied rather large value like 0.1, the vehicle easily went off the track right after it started running.
Still we can assume adding I coefficient help in case of wheels drifs with running in much speed. However I could not find significant different by adding I:0.01.
Twiddle
- P: 0.5, D: 9.2 and I: 0.01 with Twiddle every 50 frames
As above, adding I coefficient did not significantly help, so adding twiddle did not bring big difference.
- P: 0.5
- I: 0.01
- D: 9.2
- Twiddle
- Tolerance: 3.0e-8
- P: 0.05(1/10 of initial P)
- I: 0.001(1/10 of initial I)
- D: 0.092(1/10 of initial D)
- Interval: 50frames

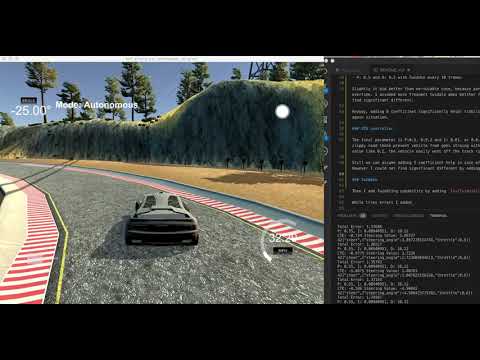

Recorded Youtube Video with the parameters above.

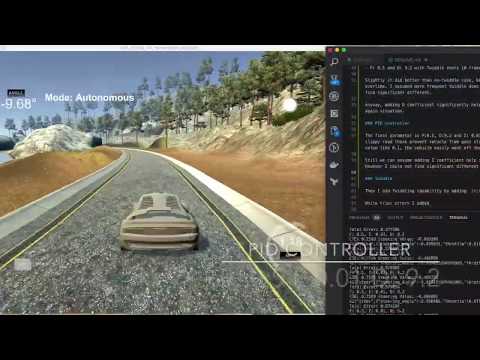

Also you can find video of optimizing proccess.(4x speed)
- cmake >= 3.5
- All OSes: click here for installation instructions
- make >= 4.1(mac, linux), 3.81(Windows)
- Linux: make is installed by default on most Linux distros
- Mac: install Xcode command line tools to get make
- Windows: Click here for installation instructions
- gcc/g++ >= 5.4
- Linux: gcc / g++ is installed by default on most Linux distros
- Mac: same deal as make - [install Xcode command line tools]((https://developer.apple.com/xcode/features/)
- Windows: recommend using MinGW
- uWebSockets
- Run either
./install-mac.shor./install-ubuntu.sh. - If you install from source, checkout to commit
e94b6e1, i.e.Some function signatures have changed in v0.14.x. See this PR for more details.git clone https://github.com/uWebSockets/uWebSockets cd uWebSockets git checkout e94b6e1
- Run either
- Simulator. You can download these from the project intro page in the classroom.
Fellow students have put together a guide to Windows set-up for the project here if the environment you have set up for the Sensor Fusion projects does not work for this project. There's also an experimental patch for windows in this PR.
- Clone this repo.
- Make a build directory:
mkdir build && cd build - Compile:
cmake .. && make - Run it:
./pid.
