UnityURP-MobileScreenSpacePlanarReflection

A simple and fast ScreenSpacePlanarReflection(SSPR) as a standalone reusable RendererFeature in URP.
Can run on PC/console/vulkan android, other platforms not tested but should work if compute shader is supported.

See runtime video here: https://youtu.be/Cy46A8EyX4Q
download pre-built .apk here: https://drive.google.com/file/d/14Z_Gjb1ADz8RhcBgAFpa96dm-oQuOyQx/view?usp=sharing

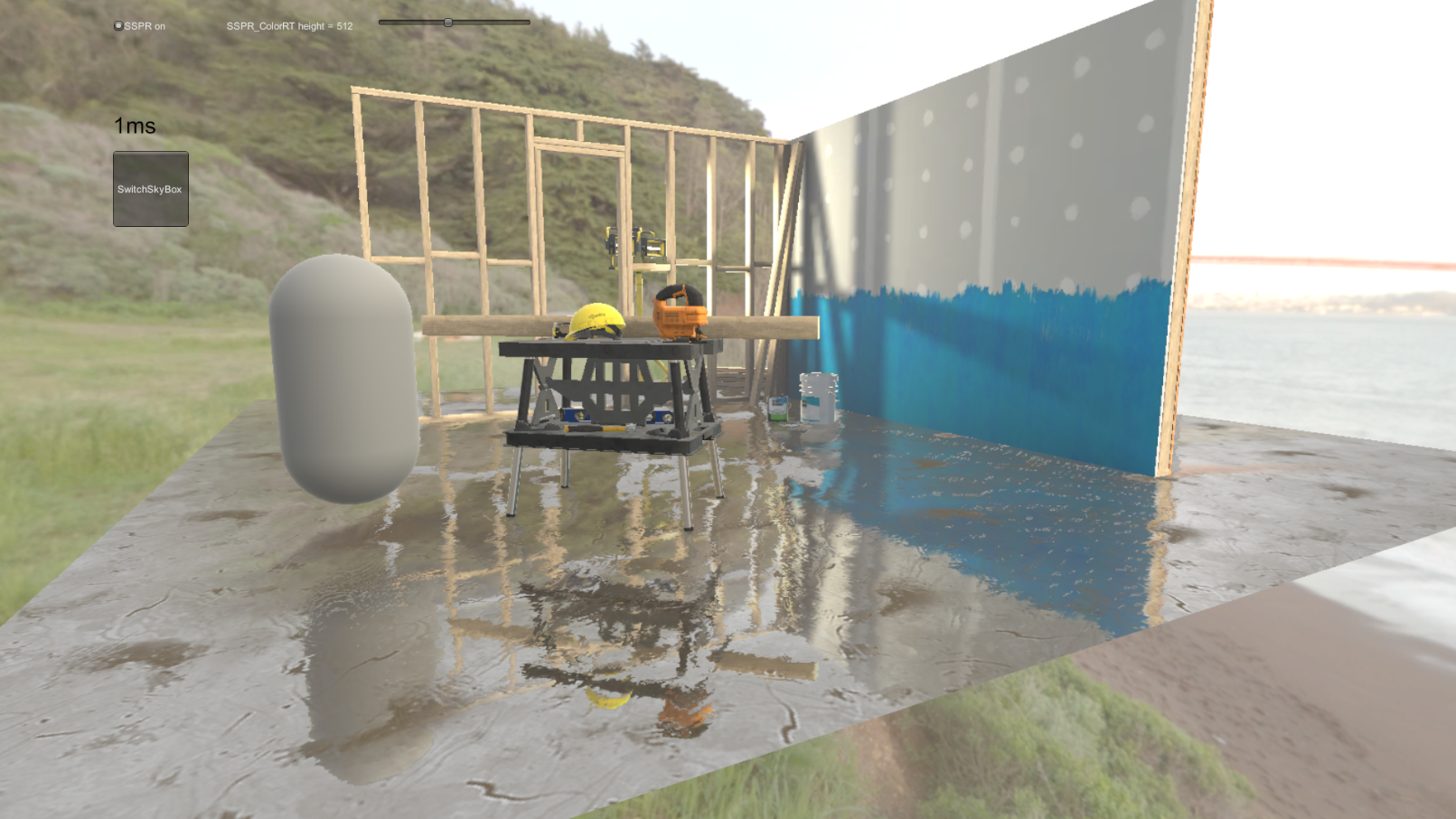

SSPR ON SSPR OFF SSPR ON SSPR OFF

On Adreno630 GPU android mobile device(almost all 2018/2019 flagship android mobiles), Toggle SSPR ON/OFF:

cost <1ms to update 128 height SSPR RT
cost <1ms to update 256 height SSPR RT
cost 1~2ms to update 512 height SSPR RT

On Adreno612 GPU android mobile device(Samsung Galaxy A70), Toggle SSPR ON/OFF:

cost <1ms to update 128 height SSPR RT
cost 1~2ms to update 256 height SSPR RT
cost 4~5ms to update 512 height SSPR RT

On Adreno506 GPU android mobile device(Lenovo S5), Toggle SSPR ON/OFF:

cost ~1ms to update 128 height SSPR RT
cost 3~4ms to update 256 height SSPR RT
cost 8~9ms to update 512 height SSPR RT

Where are the important files?

There are only 4 important code files, all inside a folder "Assets \ _MobileSSPR \ ReusableCore".
https://github.com/ColinLeung-NiloCat/UnityURP-MobileScreenSpacePlanarReflection/tree/master/Assets/_MobileSSPR/ReusableCore
Other files are for demo only, not important.

Can it run on mobile?

Tested on ~10 android devices(all support Vulkan). If your android device support Vulkan, result should be correct and rendering should be fast enough. (OpenGLES3.2 is not enough, must support Vulkan!)

*We have received a report that this SSPR is not working on MaliT760 GPU android (Galaxy S6), but we don't have this device to reproduce it

How to try this inside my own URP project?

copy "Assets \ _MobileSSPR \ ReusableCore" folder to your project (contains 4 important code files)
turn on "Depth Texture" in all your project's URP's setting
turn on "Opaque Texture" in all your project's URP's setting
Add MobileSSPRRendererFeature(RendererFeature) to your forward renderer asset
create a new plane game object in your scene (set world space pos y = 0.01)
create a material using MobileSSPRExampleShader.shader
assign this material to your new plane

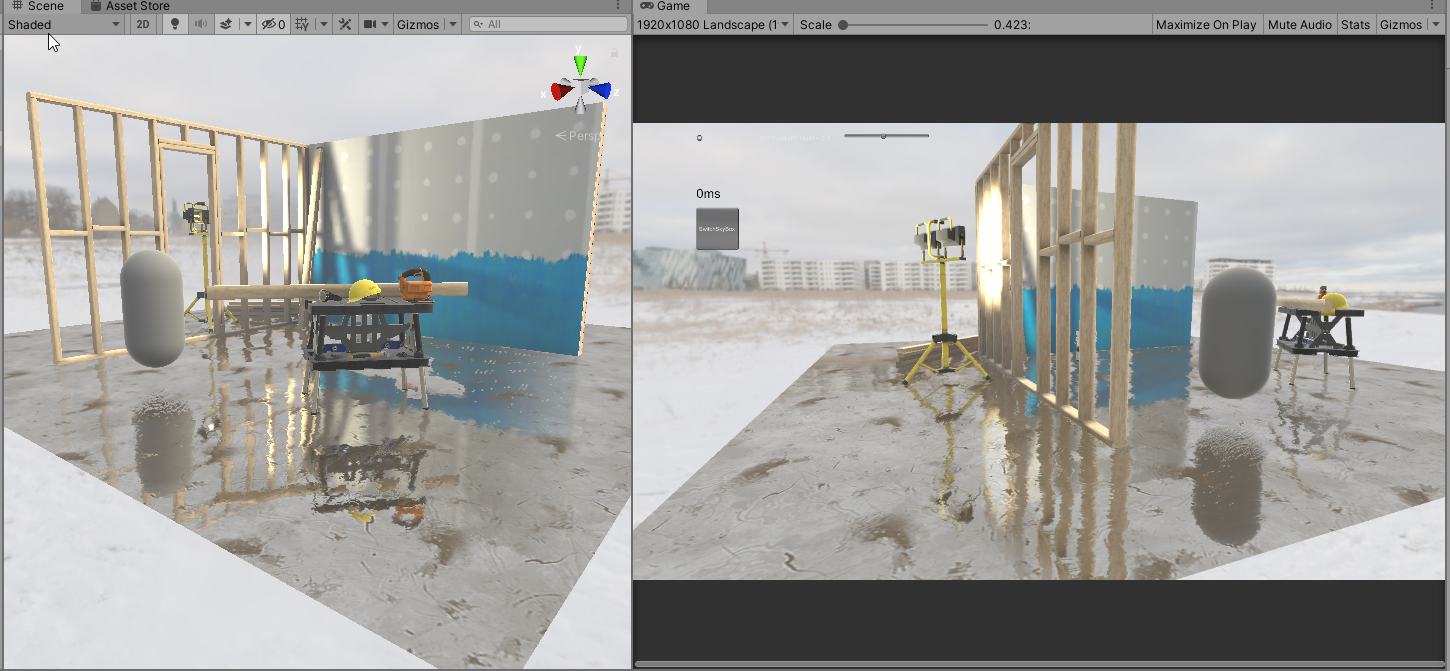

DONE! You should see correct reflection both in scene and game window

I can see some small flickering in reflection / can't see any reflection

It is not expected! Please report your device name in Issues, thanks!

Notes

It is not safe to use InterlockedMin() and RenderTexture color format "RInt" on android/iOS compute shader(see -> https://zhuanlan.zhihu.com/p/150890059). Instead, we will use RenderTexture color format RFloat / ARGBHalf to produce similar result.

Editor

2020.3.33f1 LTS

Implementation reference

http://remi-genin.fr/blog/screen-space-plane-indexed-reflection-in-ghost-recon-wildlands/
http://advances.realtimerendering.com/s2017/PixelProjectedReflectionsAC_v_1.92_withNotes.pdf
https://zhuanlan.zhihu.com/p/150890059
https://github.com/Steven-Cannavan/URP_ScreenSpacePlanarReflections
UE4 source - PostProcessPixelProjectedReflectionMobile.usf (UE4 4.26)

Change log

2020-08-23: add iOS/OSX support (with the help of MusouCrow)
2022-05-02: upgrade project to Unity2020.3.33f1, merged a bug fix in MobileSSPRComputeShader.compute
