3D Scan And Share System

Setup Instructions

  1. Network Connection

    • Connect your PC and iPhone/iPad to the same network.

  2. Application Installation

    • Install the app to iPhone/iPad.
      • Please contact me for the download link. X,LinkedIn
      • This app works on iPhone/iPad but using the model with LiDAR sensor is recommended.
    • Download the app for Looking Glass from download page. Download
    • Download and install Looking Glass Bridge from the official website: Looking Glass Bridge.
    • Confirm your display setting. Display Setting

Application Usage

  1. Connect Devices

    • Connect your PC and the Looking Glass Portrait using an HDMI cable.

  2. Launch Software

    • Start the Looking Glass Bridge application.
    • Launch 3DObjectViewer.exe.
    • Ensure that the Looking Glass displays the PC's IP Address.

  3. Start the iPhone/iPad App

    • Open the iPhone/iPad app.
    • Enter the IP Address in the app and tap the Connect button.

  4. Scan & Play

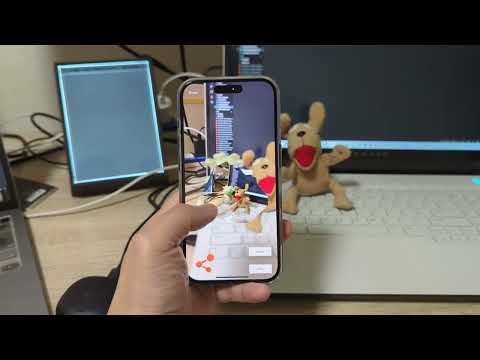

    • Please refer to the demo video to perform the 3D scan and share.
    • When viewing objects in Looking Glass, the following operations are possible:
Operation Description
Left Drag Move Up/Down/Left/Right
Right Drag Rotate
Scroll Move Forward/Backward
Ctrl + Scroll Zoom In/Out
Right Arrow (Keyboard) Display Next Object
Left Arrow (Keyboard) Display Previous Object
R (Keyboard) Reset Rotation
D (Keyboard) Delete Current Object
Q (Keyboard) Export Quilt Image

Adding and Deleting 3D Model Files

  • Please add or delete files as needed in the dl folder within the same directory as 3DObjectViewer.exe.
  • Additionally, you can delete the currently displayed object by pressing the D key while running 3DObjectViewer.exe.

Exporting Data

  • By pressing the Q key while running 3DObjectViewer.exe, Quilt images will be saved in the following directory:
    3DScanObjectViewerForWindows -> Quilts

Trouble Shooting

  • After sending 3d model to a PC, if the model not appear immediately in LookingGlass, please remove 3DObjectViewer.exe from your firewall settings once.
    Alternatively, turn off the firewall only when using this application.
  • When you update the version of the Scan app (iOS), the app may crash after the scan is complete. In such cases, please restart your iPhone and try scanning again.
  • If the receiver app is unable to receive 3D objects, please restart your PC (or Quest).

Show Your Usecase

I would love to see your use cases and scanned creations. It’s not mandatory, but if you’re willing, I would appreciate it if you could tag the following accounts when posting on social media.

X: @Tks_Yoshinaga
LinkedIn: Takashi Yoshinaga

Depth Video Player

If you are interested in recording and playing back depth-enabled videos rather than displaying 3D scanned objects, please try the following application!
https://github.com/TakashiYoshinaga/DepthVideoPlayer
