Wire™

This repository is part of the source code of Wire. You can find more information at wire.com or by contacting opensource@wire.com.

You can find the published source code at github.com/wireapp/wire.

For licensing information, see the attached LICENSE file and the list of third-party licenses at wire.com/legal/licenses/.

No license is granted to the Wire trademark and its associated logos, all of which will continue to be owned exclusively by Wire Swiss GmbH. Any use of the Wire trademark and/or its associated logos is expressly prohibited without the express prior written consent of Wire Swiss GmbH.

Wire server

This repository contains the source code for the Wire server. It contains all libraries and services necessary to run Wire.

For documentation on how to self host your own Wire-Server see this section. Federation is on our long term roadmap.

See more in "Open sourcing Wire server code".

Contents of this repository

This repository contains the following source code:

services
- nginz: Public API Reverse Proxy (Nginx with custom libzauth module)
- galley: Conversations and Teams
- brig: Accounts
- gundeck: Push Notification Hub
- cannon: WebSocket Push Notifications
- cargohold: Asset (image, file, ...) Storage
- proxy: 3rd Party API Integration
- restund: STUN/TURN server for use in Audio/Video calls
- spar: Single-Sign-On (SSO)
tools
- api-simulations: Run automated smoke and load tests
- db/: Migration tools (e.g. when new tables are added)
- stern/: Backoffice tool (basic Swagger based interface)
libs: Shared libraries

It also contains

build: Build scripts and Dockerfiles for some platforms
deploy: (Work-in-progress) - how to run wire-server in an ephemeral, in-memory demo mode
doc: Documentation
hack: scripts and configuration for kuberentes helm chart development/releases mainly used by CI
charts: Kubernetes Helm charts. The charts are mirroed to S3 and can be used with helm repo add wire https://s3-eu-west-1.amazonaws.com/public.wire.com/charts. See the Administrator's Guide for more info.

Architecture Overview

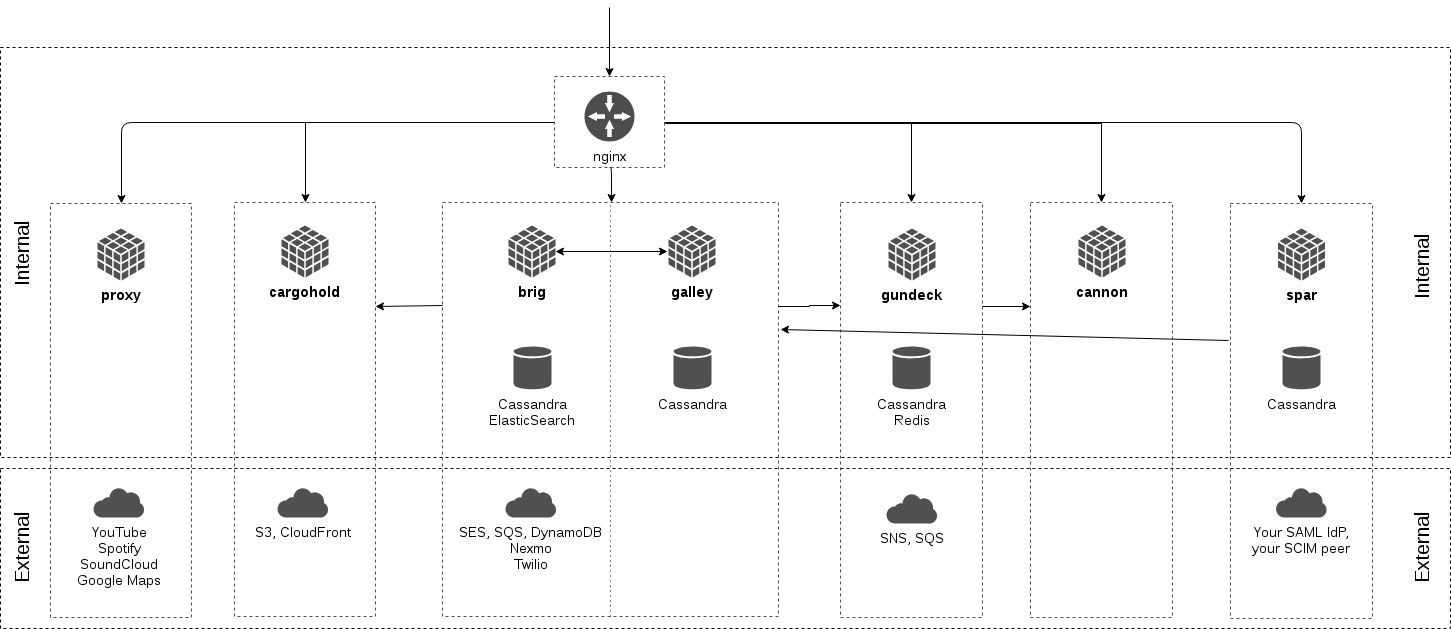

The following diagram gives a high-level outline of the (deployment) architecture of the components that make up a Wire Server as well as the main internal and external dependencies between components.

Communication between internal components is currently not guarded by dedicated authentication or encryption and is assumed to be confined to a private network.

Development setup

How to build `wire-server` binaries

There are two options:

1. Use docker

If you don't wish to build all docker images from scratch (e.g. the ubuntu20-builder takes a very long time), ready-built images can be downloaded from here.

If you wish to build your own docker images, you need docker version >= 17.05 and make. Then,

# optionally:
# make docker-builder # if you don't run this, it pulls the ubuntu20-builder image from quay.io
make docker-deps docker-intermediate docker-services

# subsequent times, after changing code, if you wish to re-create docker images, it's sufficient to
make docker-intermediate docker-services

will, eventually, have built a range of docker images. Make sure to give Docker enough RAM; if you see make: *** [builder] Error 137, it might be a sign that the build ran out of memory. You can also mix and match – e.g. pull the ubuntu20-builder image and build the rest locally.

See the Makefiles and Dockerfiles, as well as build/ubuntu/README.md for details.

2. Use nix-provided build environment

This is suitable only for local development and testing. See build instructions in the developer documentation.

How to install and run `wire-server`

You have two options:

Option 1. (recommended) Install wire-server on kubernetes using the configuration and instructions provided in wire-server-deploy. This is the best option to run it on a server and recommended if you want to self-host wire-server.
Option 2. Compile everything in this repo, then you can use the services/start-services-only.sh. This option is intended as a way to try out wire-server on your local development machine and not suited for production.
