Video Filtering on Artix-7 FPGA

Description:

This project implements a video processing pipeline that captures video data from an OV7670 camera and applies a Gaussian lowpass filter and a Sobel edge detection filter.

Users can use the buttons and switches on the dev board to interact with the video processing system.

  • Video processing can be toggled on and off (video passthrough)
  • Gaussian and Sobel filters can be enabled or disabled seperately
  • Sobel filter thresholding can be changed by using the board buttons.

The project is completed; more documentation to come when I have time.

High-level Overview:

  • The system is comprised of a camera interface block, preprocessing block, and gaussian and sobel filtering blocks.
  • Processed video data is stored into a framebuffer synthesized as block memory where it is retrieved for display over HDMI.
  • In RGB video passthrough mode, pixels are represented in RGB444 format and extended to RGB888 for TMDS encoding.
  • In video processing modes, pixels are represented as eight-bit greyscale values.
  • Display format is 640x480 30FPS.

Camera Interface:

  • The camera interface configures the OV7670 camera via i2c and captures pixel data (RGB444) into an asynchronous FIFO.

Preprocessing (RGB to Greyscale):

  • The preprocessing block converts RGB444 to greyscale for filtering. It uses the algorithm y = 0.299*R + 0.587*G + 0.114*B.
  • The algorithm is implemented using bit-shifts, see docs/notes.txt.

Kernel Processing: Both the Gaussian and Sobel filters are implemented using the designs shown above.

  • A kernel control module (ps_kernel_control) fetches data from the FIFO of the previous stage in the system pipeline and fills the line buffers sequentially.
  • Once three line buffers are full, it begins to feed pixel data 9 pixels at a time (3 from each line) to the kernel processing pipeline.
  • The output from the kernel processing pipeline is written to a synchronous FIFO.

Gaussian:

Sobel: Some noteworthy design features:

  • Technically, the Sobel operator is expressed as G = sqrt(Gx^2 + Gy^2) .
  • To avoid doing the square root (doable, but would need a CORDIC), thresholding is used instead.

Demos

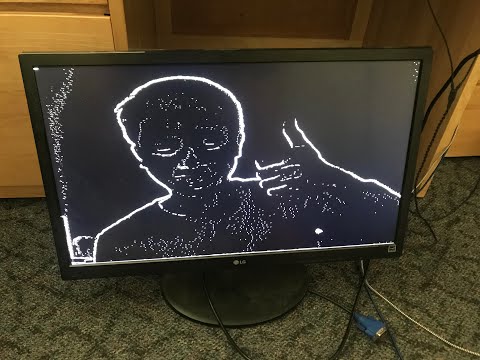

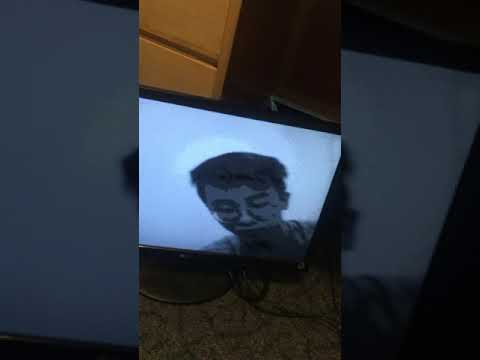

  • Click the images below to view Youtube videos. Gaussian Filter Full Demo
