Wrong PCB hole diameter

krotos139 opened this issue · 4 comments

krotos139 commented

Wrong PCB holes for screw terminals.

knaufinator commented

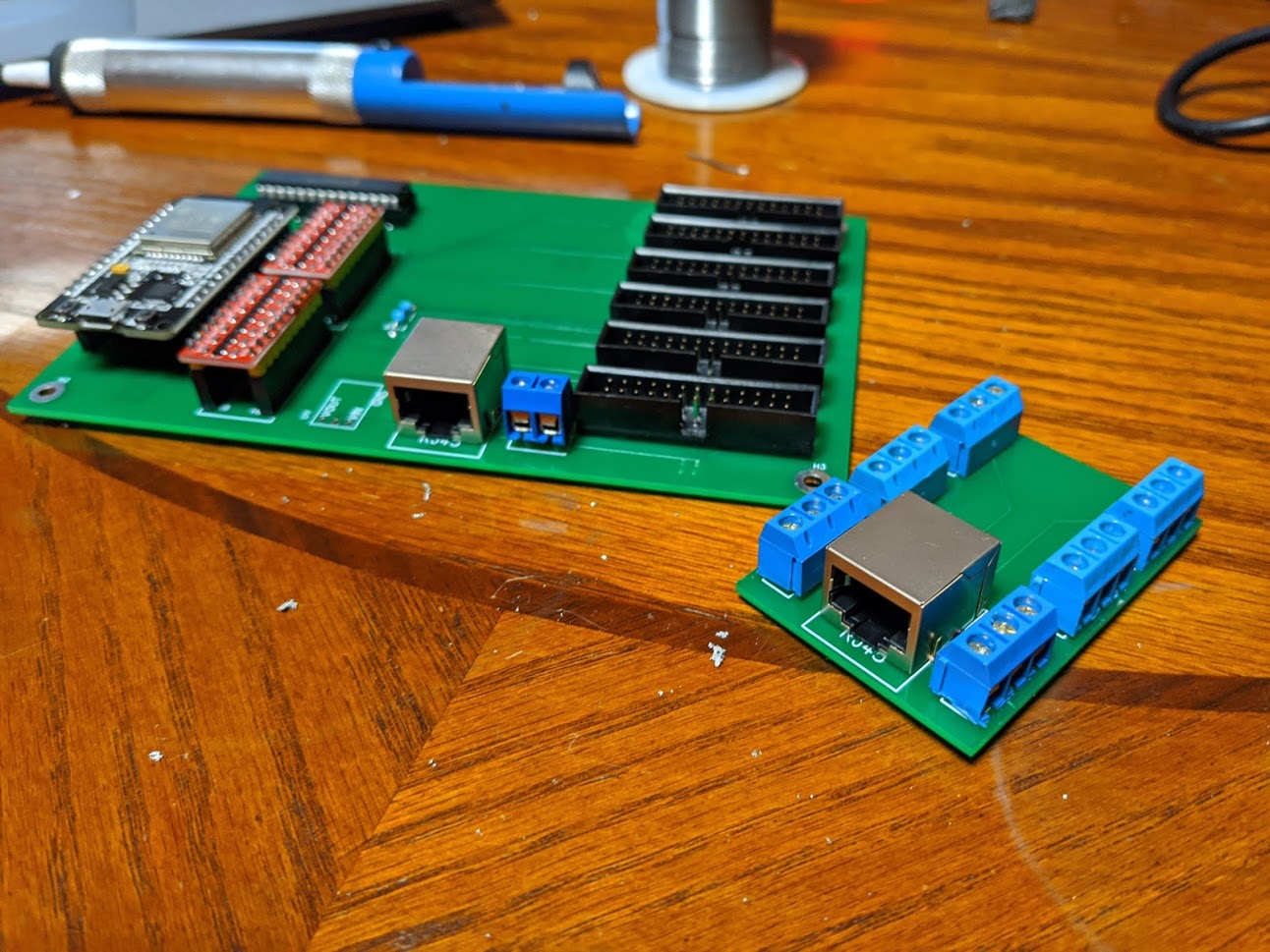

to small? I had these blue ones laying around in my shop, and they fit. suggestions?
IMG_20200911_210004

krotos139 commented

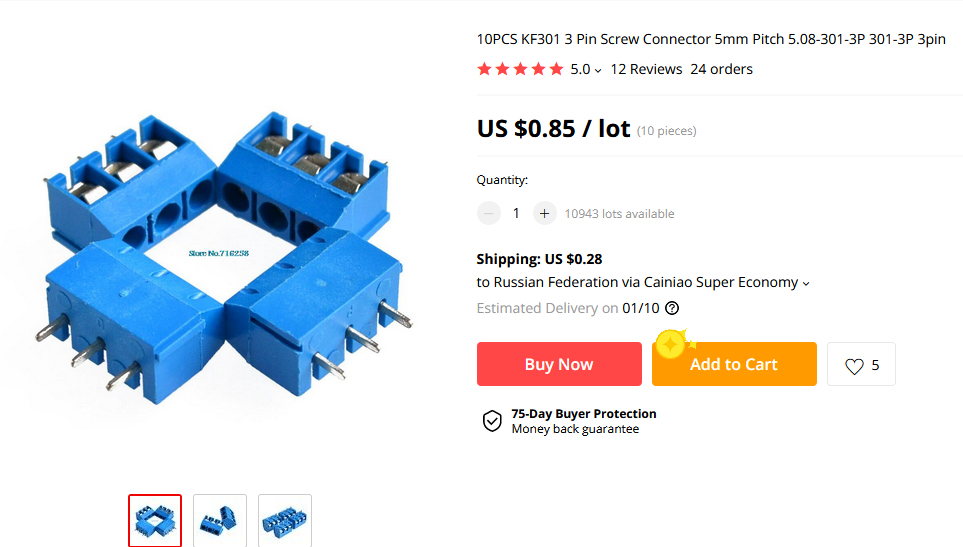

I bought this screw terminals:

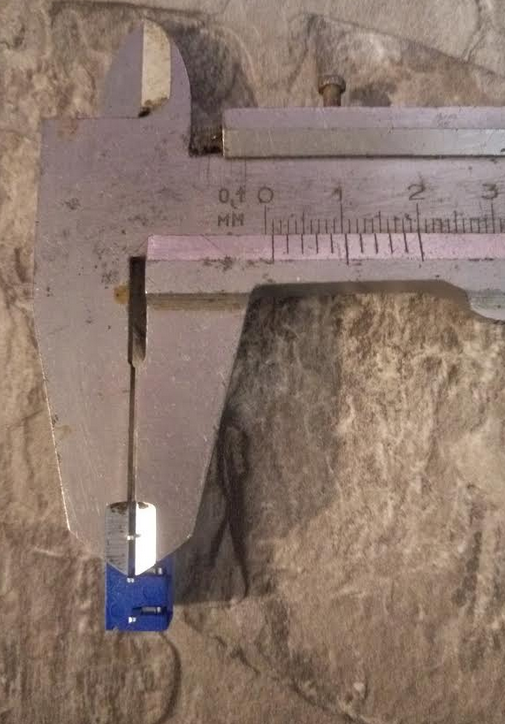

This terminals looks like your. This screw terminal has pin thikness 1mm:
But PCB has hole size is 0.915 mm. And I cannot insert it easy.

Have you had any problems installing these terminals?

knaufinator commented

Mine were used/desoldered from an old project, they fit.. but it was snug,.. I assumed because of the solder-remains

I checked the part in the schematic and it looks like @0.915mm diam. so spot on measure..

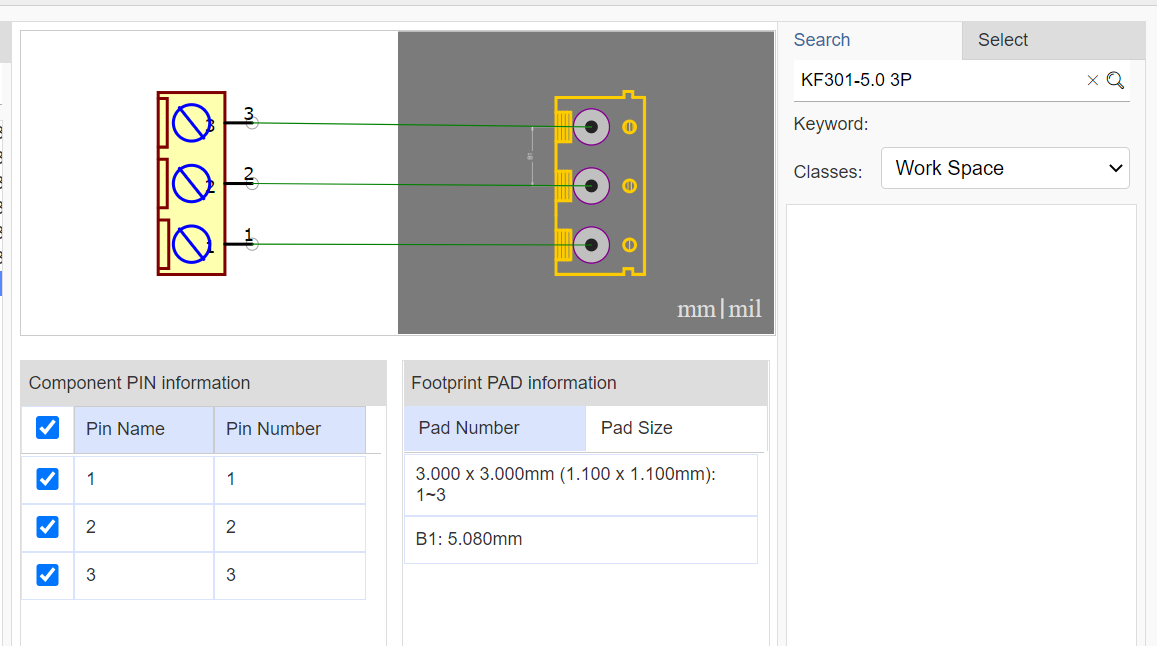

I have found based on your picture, this schematic part that looks like it would fit better,

I will update the PCB's with this screw terminal, I agree that this would be better. thanks... I will try to do it today

knaufinator commented

Updated both PCB Gerbers, with 1.1mm pitch screw terminals, Thanks @krotos139
