robot_blockly

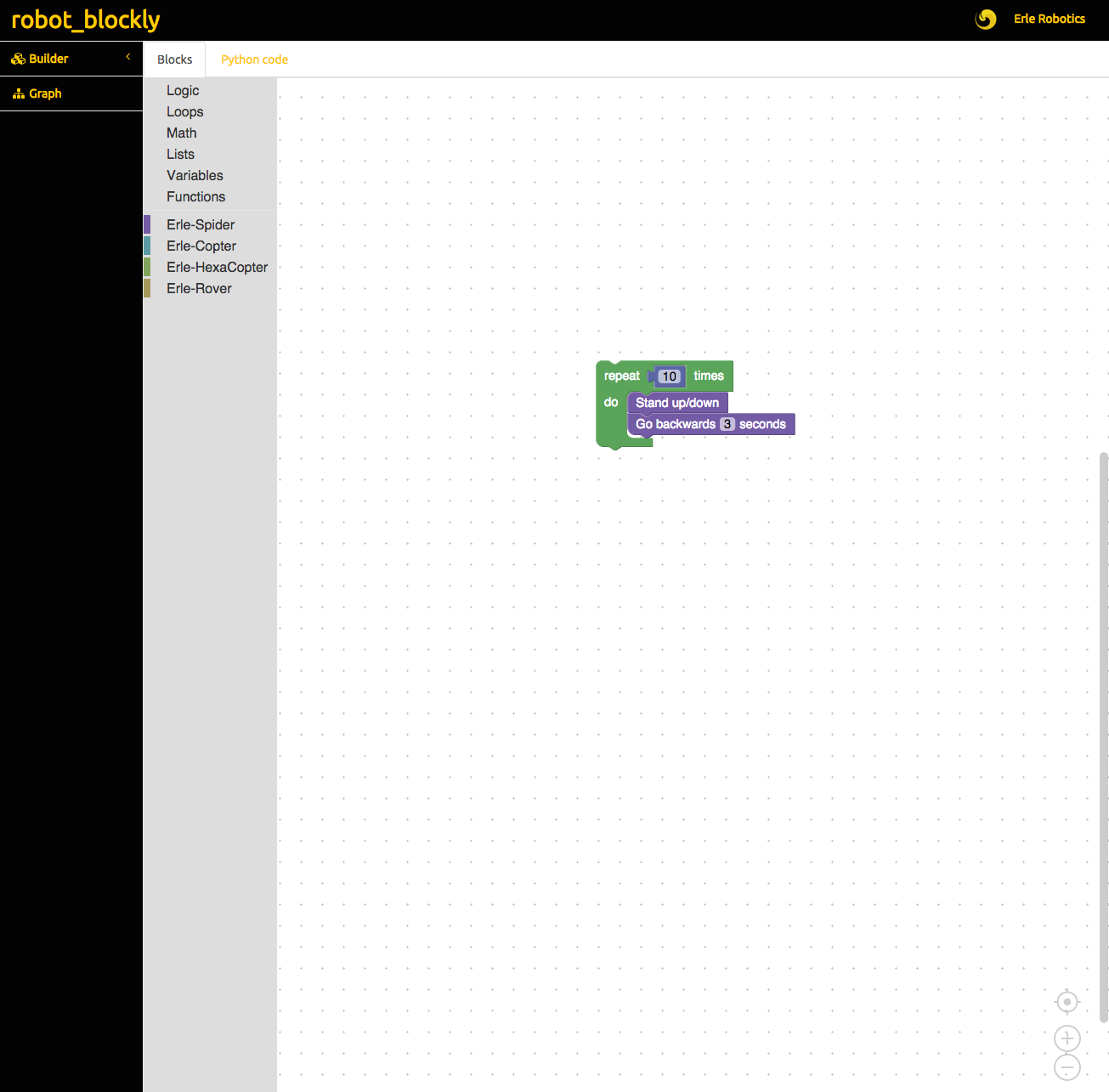

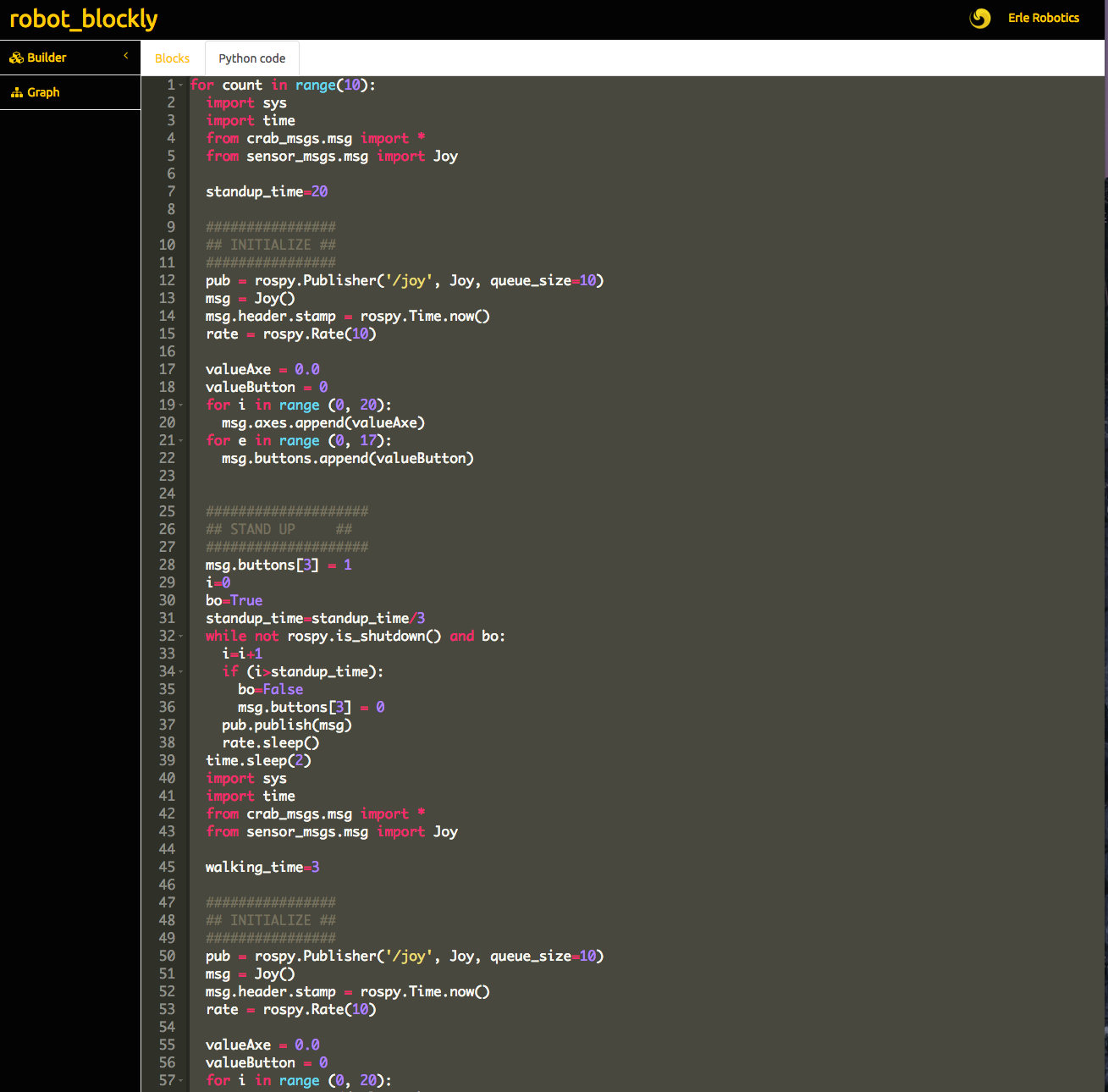

robot_blockly is a ROS package that provides web-based visualization and block programming tools for robots and drones.

Installation:

mkdir -p ~/ws_xbotblockly/src
cd ~/ws_xbotblockly/src
git clone --recursive https://github.com/lazyparser/robot_blockly
cd ..
catkin_make_isolated -j2 --pkg robot_blockly --install

Launch it:

source ~/ws_xbotblockly/install_isolated/setup.bash
roslaunch robot_blockly robot_blockly.launch

Create your own blocks

Open frontend/demos/blockfactory/index.html
Design you own block and then add the metadata to: frontend/blockly/blocks and frontend/blockly/generator
Launch python build.py to regenerate the blocks.

In-depth explanation here

License

blockly has been built based on blockly, ACE and Bootstrap. Refer to their sources for the corresponding licenses.

Unless specified, the rest of the code is freed under a GPLv3 License.

Documentation

Erle Robotics blockly docs
ROS Wiki

Robots where blockly has been implemented:

Erle-Spider
Erle-Rover
Shadow Robot hands
